Exposed grid Lay-in tile ASD-500

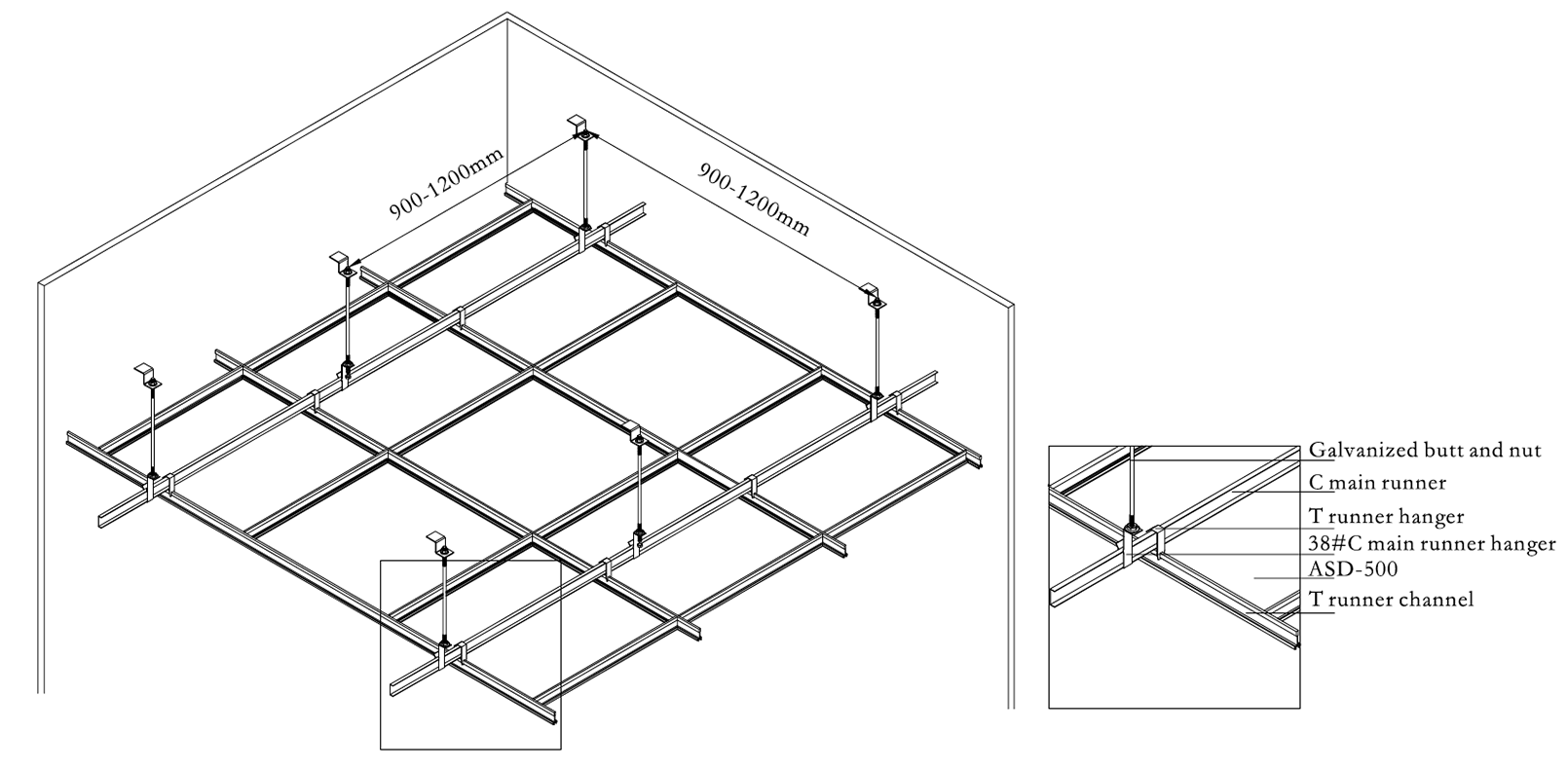

The lay-in tile ceiling is an exposed supporting grid suspension system. The grooved main and secondary runners are interlocked in a crisscross manner to form a network of 600mm X600mm and 600mm Xl 200mm grids. The exposed grooved runners constitute a rich visual effect. Different models of runner can be chosen to enhance sharp linear effects, different shapes and unique three-dimensions.

Square panels of 575mm and 584mm can be chosen. Different colors can be chosen, tiling or height difference to highlight the features of ceiling. Lay­ intile ceiling system design means ceiling panels are placed on the grooved runner in a tiled manner, it looks simple and tidy. The assemble time can be greatly shortened, installation and disassemble are also simple which brings great convenience to future maintenance.

Application

Suitable for hospitals,office building,shopping malls, etc.

Product Features

1.High-quality spray treatment, color is softer and durable

2.Runner has a unique angled mortise design to highlight features of the ceiling

3.Different colors and perforations to choose from
