Squareedge type ASD-N

The square edge type ceilings effectively create the unique effect of using space to absorb sound. It is suitable for meeting rooms, theaters, etc. The ceilings are elegant and unique. The panels are made of light-weight material, which are buckled in the main runner. Ease of installation and disassembly which brings convenience to future maintenance. Loss of air-conditioning can be prevented by placing sound­ absorbing and insulation material on the top of ceiling.

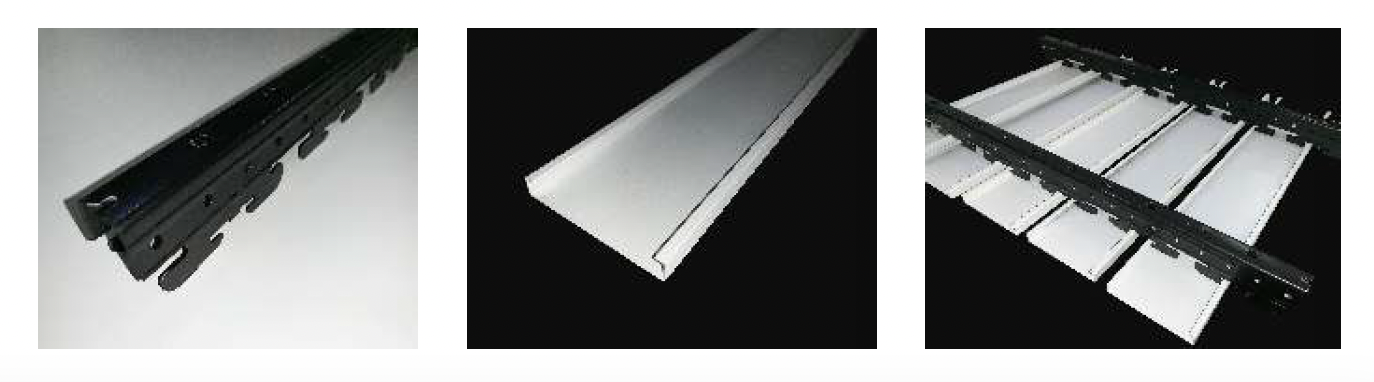

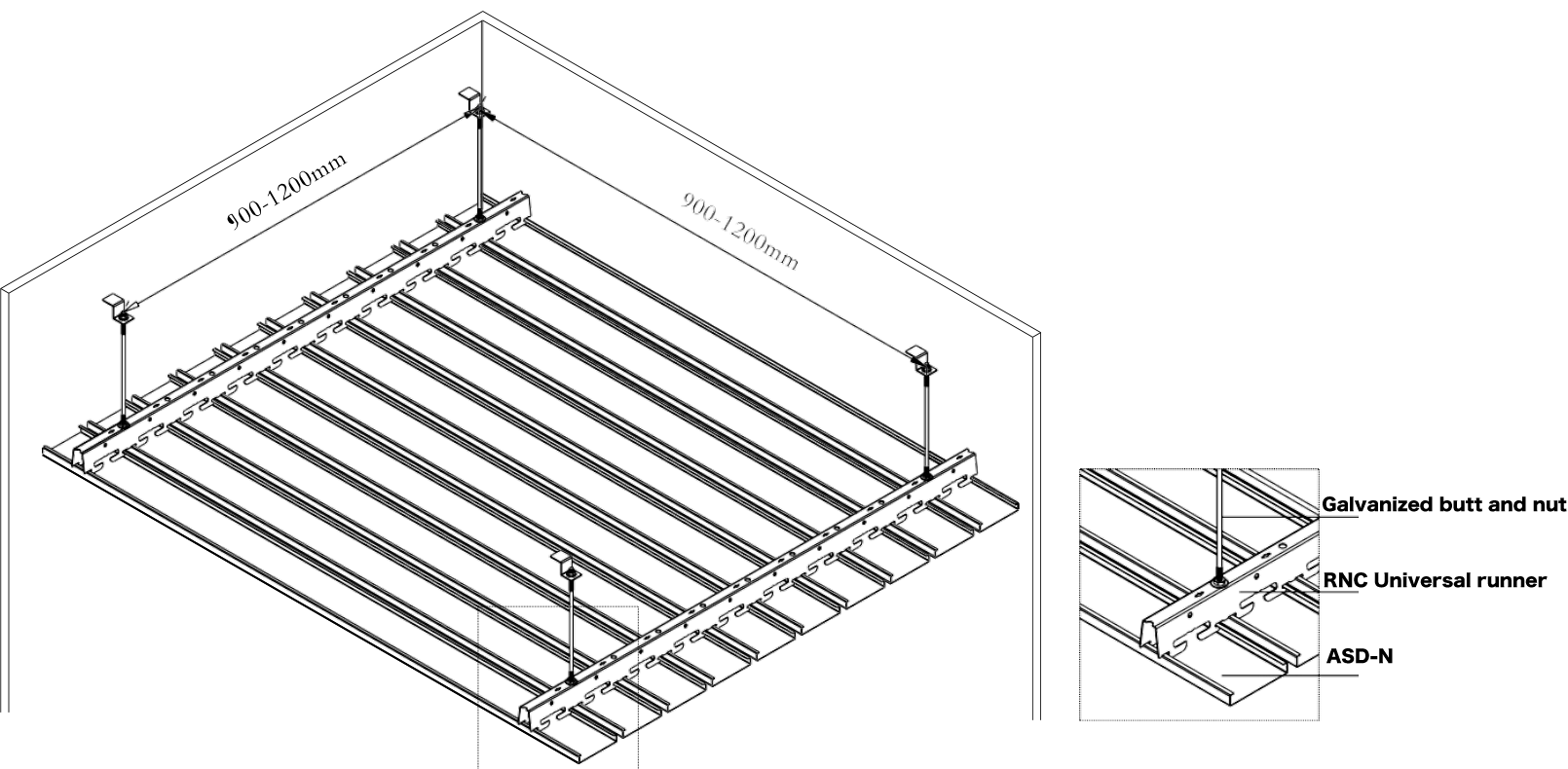

The ceiling system is equipped with special main runners that can be used with width 85mm, 185mm,285mm panel. It can also be configured with lighting spotlights and air conditioning ventilation equipment.

Application

Suitable for airports, conference rooms, theaters, offices, restaurants, corridors, etc.

Product Features

1.Different width of panels can be customized and matched.

2.Spacing between panel sore 15mm to increase the visual effect.

3.Endcap at the end of panels to ensure the flatness of the joints

4.Wind-proofing system can be installed. A range of colors and perforations are available.
