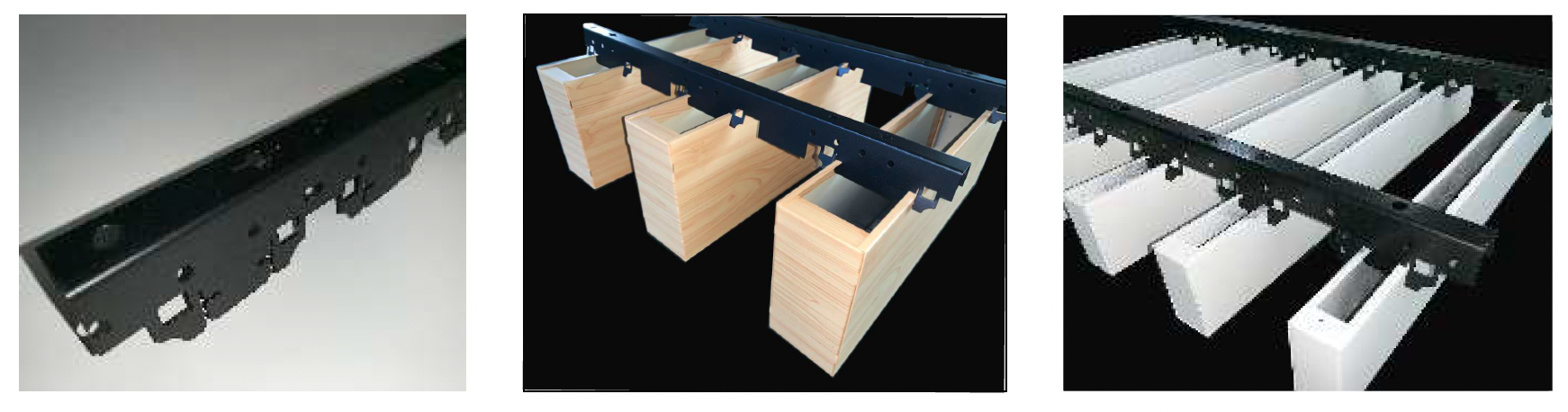

Open recessed ceiling type ASD-U

The Open recessed ceiling type uses space to effectively absorb sound from the space between panels. The width of the ceiling panels varies from 20 to 100 mm, and the height can be selected from 50 to 300 mm.

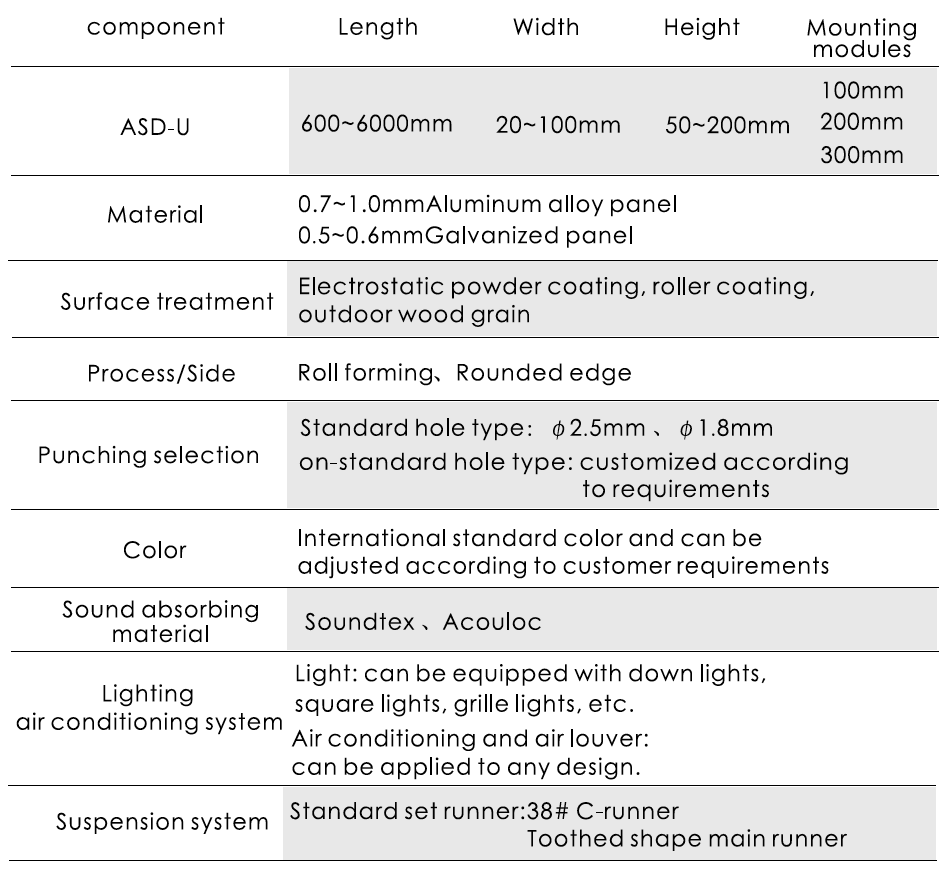

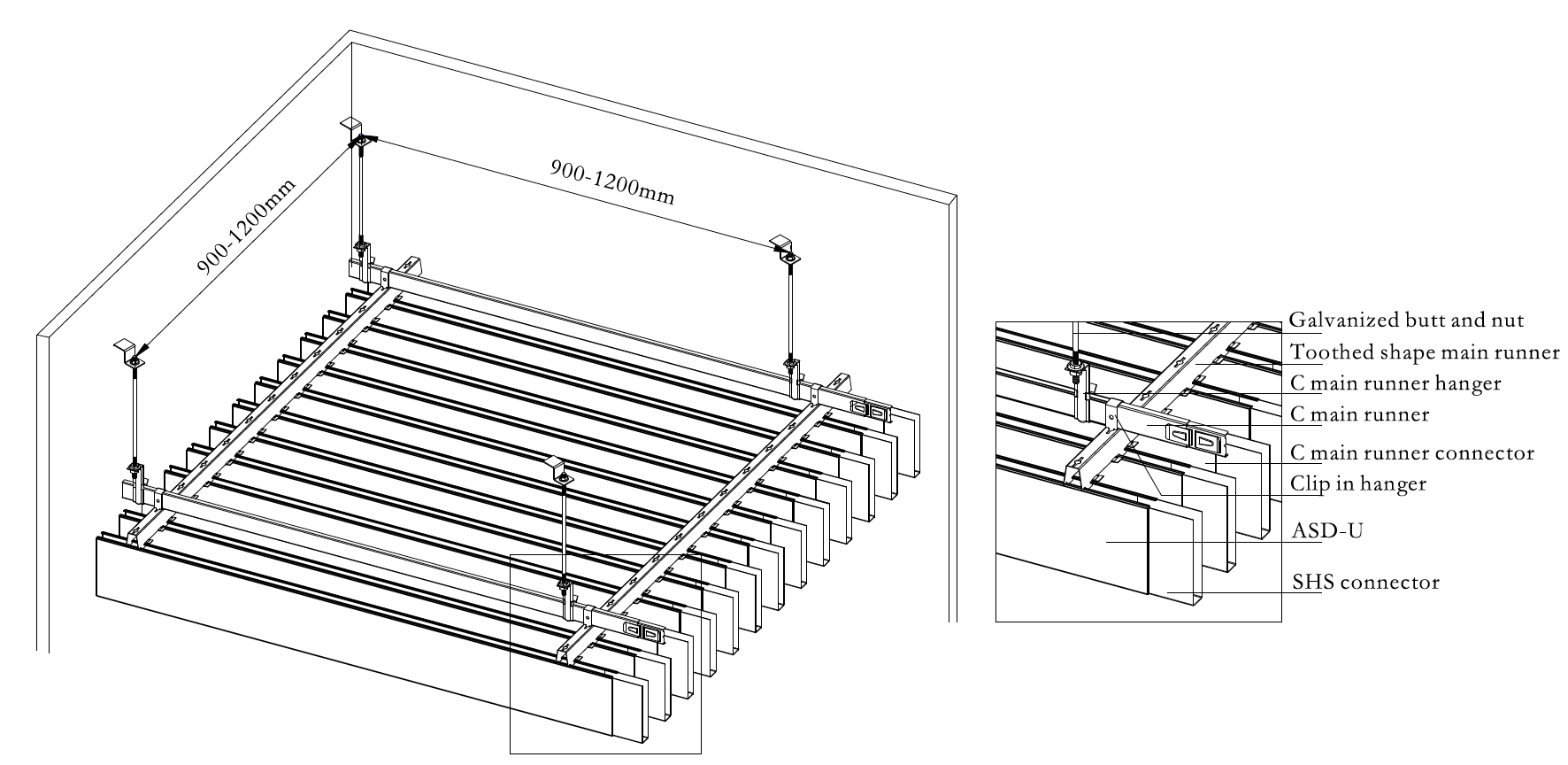

Material is light and can be assembled by directly buckle on the runnerto increase the features and layers effect. Simple installation and disassembly method component Length Width Height Mounting modules 100mm ASD-U 600~6000mm 20~100mm 50~200mm 200mm 300mm Material 0.7~1 .0mmAluminum alloy panel 0.5~0.6mmGalvanized panel Surface treatment brings convenience to the future maintenance; sound­ absorbing insulation material can be placed on the top in order to avoid air-conditioning loss.

Application

Suitable for airports, subways, theaters, restaurants, corridors, auditoriums, etc.

Product Features

1.Wind-proofing system can be installed.

2.Different width of panels can be customized and matched.

3.Spacing between panels can be freelyadjusted to achieve your desire effect

4.Curved runner can achieve numerous curved surface features

5.A range of colors and perforations are available
